How Do Engineers Actually Measure Guardrail Crash Performance

Evaluating road guardrail systems begins with a clear set of measurable performance metrics that reflect how effectively a traffic guardrail mitigates crash consequences. These parameters include impact severity, occupant risk indices, and structural deformation limits. The relationship between crash severity and occupant safety is often quantified through energy absorption efficiency and post-impact vehicle stability. A well-designed guardrail must deform in a controlled manner to absorb kinetic energy while maintaining enough rigidity to redirect vehicles safely. Standardized testing protocols such as EN 1317 and MASH ensure comparability across systems and establish threshold values for containment levels and working widths.

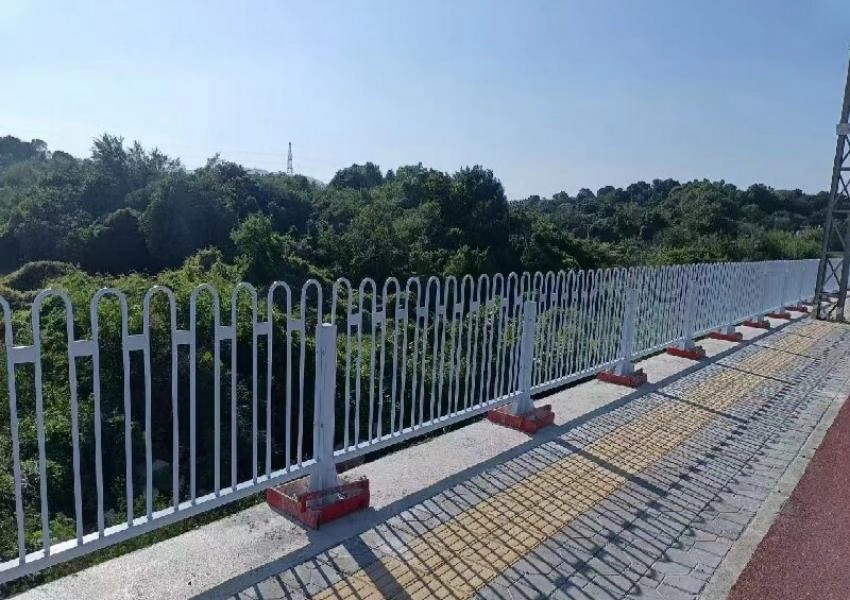

Traffic guardrails are the core infrastructure that ensures road traffic order and safety. With “isolation and diversion, collision protection, warning, and guidance” as the core functions, they are made of high-strength substrates such as steel and aluminum alloy and processed through welding, anti-corrosion, and forming processes. This structural integrity directly supports consistent crash performance measurement under standardized impact conditions.

How Do Guardrail Systems Contribute to Road Safety Objectives?

The primary goal of any traffic guardrail is to minimize injury risk during collisions by dissipating impact energy before it reaches vehicle occupants. Another critical objective is preventing vehicles from leaving the roadway or entering hazardous zones such as opposing lanes or roadside slopes. A successful system balances containment capability with controlled energy absorption—too rigid a barrier may cause severe deceleration forces, while excessive flexibility could allow penetration or rollover.

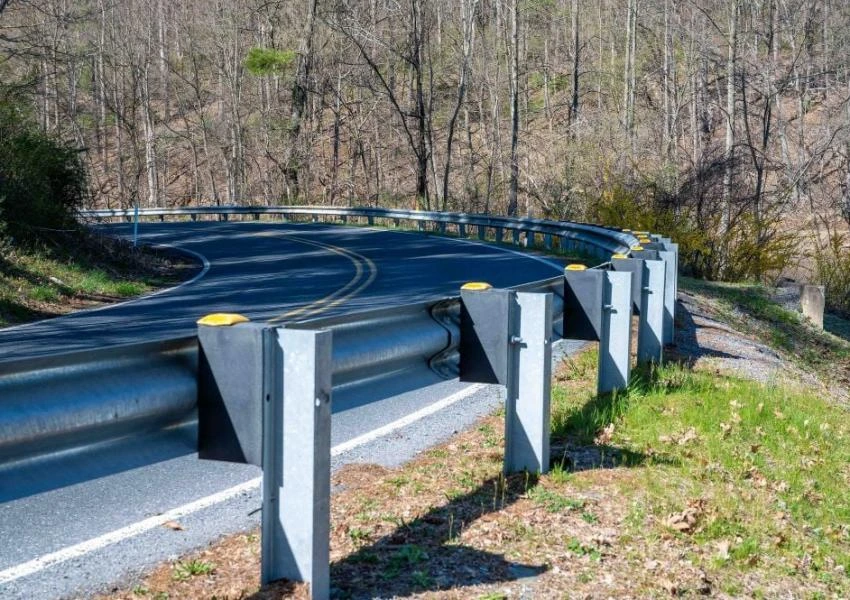

Highway guardrails are the most crucial and widely used passive safety system in highway traffic safety facilities. They refer to rigid or semi-rigid guardrails continuously installed along both sides of the highway mainline and the central median. Their core function is to absorb collision energy through deformation, forcing out-of-control vehicles to change direction and effectively preventing vehicles from crossing the boundary (running off the road or crossing the central median), thereby reducing the severity of accidents and ensuring the safety of drivers and passengers.

Which Indicators Are Core to Evaluating Guardrail Effectiveness?

Before defining compliance thresholds, engineers focus on quantifying how a road guardrail behaves under dynamic loading conditions.

How Is Impact Severity Measured Through Energy Absorption?

Impact severity correlates directly with how efficiently a barrier dissipates kinetic energy during collision events. Parameters like dynamic deflection — the maximum lateral displacement under load — indicate system flexibility, while working width defines how much space is required behind the barrier for safe deformation. The correlation between these indicators determines whether post-crash stability can be maintained without vehicle rebound into active lanes.

The core adopts a “horizontal bar + vertical bar” reinforcement, integral welding, or modular splicing design. Some high-risk scenarios (such as highways and expressways) use reinforced structures such as corrugated beams and anti-collision columns, which can withstand the impact force of vehicles of different tonnages (in accordance with the GB/T 26941 series traffic guardrail standards) and are not easily scattered or deformed after impact, effectively buffering the impact force and reducing the degree of accident injuries.

How Is Vehicle Redirection Assessed After Impact?

Successful redirection requires that vehicles remain upright while being guided back into their lanes at controlled exit angles. Engineers assess this through post-impact trajectory analysis using high-speed imaging systems. Geometry — including rail height, curvature radius, and post spacing — influences containment effectiveness by shaping contact dynamics during oblique impacts.

What Testing Methods Define Modern Guardrail Standards?

To validate theoretical models, full-scale crash tests remain indispensable for verifying real-world behavior.

How Do Full-Scale Crash Tests Quantify Real Performance?

Controlled environments replicate worst-case scenarios using standardized test vehicles at specific speeds and angles. High-speed cameras capture deformation patterns while accelerometers record deceleration profiles within test dummies to determine occupant risk indices. These empirical results classify performance levels according to containment categories defined by international standards.

Why Are Simulation-Based Tools Integral in Modern Evaluation?

Finite element modeling allows engineers to predict structural responses before manufacturing prototypes. By calibrating these models against empirical crash data, simulation accuracy improves significantly. Computational analysis reduces development costs by optimizing material thicknesses, connection geometry, and anchorage depth before physical testing.

How Do Material Choices Influence Guardrail Crash Outcomes?

Material selection governs both mechanical response during impact and long-term durability in outdoor environments.

What Role Do Material Properties Play in Energy Management?

Steel remains dominant due to its predictable plastic deformation characteristics. Aluminum offers corrosion resistance with lower weight but less ductility. Composites provide tailored stiffness but higher costs. The base material is mainly Q235 low-carbon steel and galvanized steel, while high-end models use aluminum alloy or stainless steel. Proper connection design ensures that impact loads distribute evenly across posts rather than concentrating at weld joints.

Which Structural Parameters Most Affect Performance?

Post spacing determines lateral stiffness; smaller spacing increases strength but reduces flexibility. Rail height defines containment level relative to vehicle center-of-gravity positions. Soil foundation stiffness influences post-bending behavior—softer foundations may require deeper embedment lengths for equivalent resistance. Using standardized modular production, the conventional length of a single section is 2–4 m, which can be quickly spliced and extended to meet different road length requirements. This modularity simplifies optimization when balancing stiffness against flexibility requirements across diverse terrains.

How Is Real-World Data Used to Validate Laboratory Results?

Guardrail crash simulations alone cannot capture every environmental variable; therefore, field monitoring provides essential feedback loops.

What Techniques Support Field Performance Monitoring?

Accident databases combined with roadside sensors enable statistical identification of failure modes across thousands of incidents. Integration with GIS mapping tools allows spatial correlation between terrain type, curvature radius, weather conditions, and observed damage patterns—enabling targeted upgrades for high-risk segments.

How Are Operational Post-Crash Metrics Evaluated?

Post-crash inspections analyze deformation profiles against laboratory baselines to verify predictive accuracy. Economic assessment compares repair costs versus injury reduction benefits achieved through improved designs—forming part of continuous improvement cycles within maintenance programs.

About BORUI

We operate as an integrated engineering manufacturer specializing in advanced protective systems for modern infrastructure. BORUI Metal Technology (Guangdong) Co., Ltd. is based in Dali Town, Foshan, Guangdong Province. It is a professional manufacturer of guardrails with a modern production base covering 20,000 square meters, 55 professional machines, and over 200 employees (including more than 20 R&D personnel). With years of industry experience, we focus on producing high-quality municipal guardrails, river guardrails, bridge guardrails, zinc-steel guardrails, green guardrails, and guardrail nets.

Our production philosophy prioritizes continuous innovation backed by empirical testing programs aligned with global norms (About Us). By leveraging simulation technologies alongside full-scale verification trials within our dedicated facility network exceeding 20, 000 m² floor area coverage, we deliver solutions adaptable from expressways to bridge installations where both crash protection efficiency and architectural harmony are essential attributes.

For expert consultation on system selection or customized configurations suited to complex roadway geometries or environmental exposures, professionals can reach our technical team via Contact Us channels for collaborative project planning support throughout design-to-installation cycles.

FAQ

Q1: Which parameters most influence measured road guardrail effectiveness?
A1: Dynamic deflection, working width, occupant risk indices (THIV/ASI), redirection angle control, and residual deformation all quantify effectiveness under standardized impact tests like EN 1317 or MASH classifications.

Q2: Why do real-world crashes sometimes differ from laboratory predictions?
A2: Field variables such as soil stiffness variation, non-standard vehicle masses, oblique approach angles, or weather-induced corrosion alter actual energy dissipation compared with idealized test setups; hence, continuous field monitoring refines model calibration over time.

Q3: What distinguishes flexible from rigid traffic guardrails in crash performance?
A3: Flexible barriers like cable systems absorb more energy through elongation but require larger working widths; rigid concrete types limit deflection yet transmit higher deceleration forces—hybrid semirigid steel designs balance both behaviors effectively for mixedtraffic corridors.
